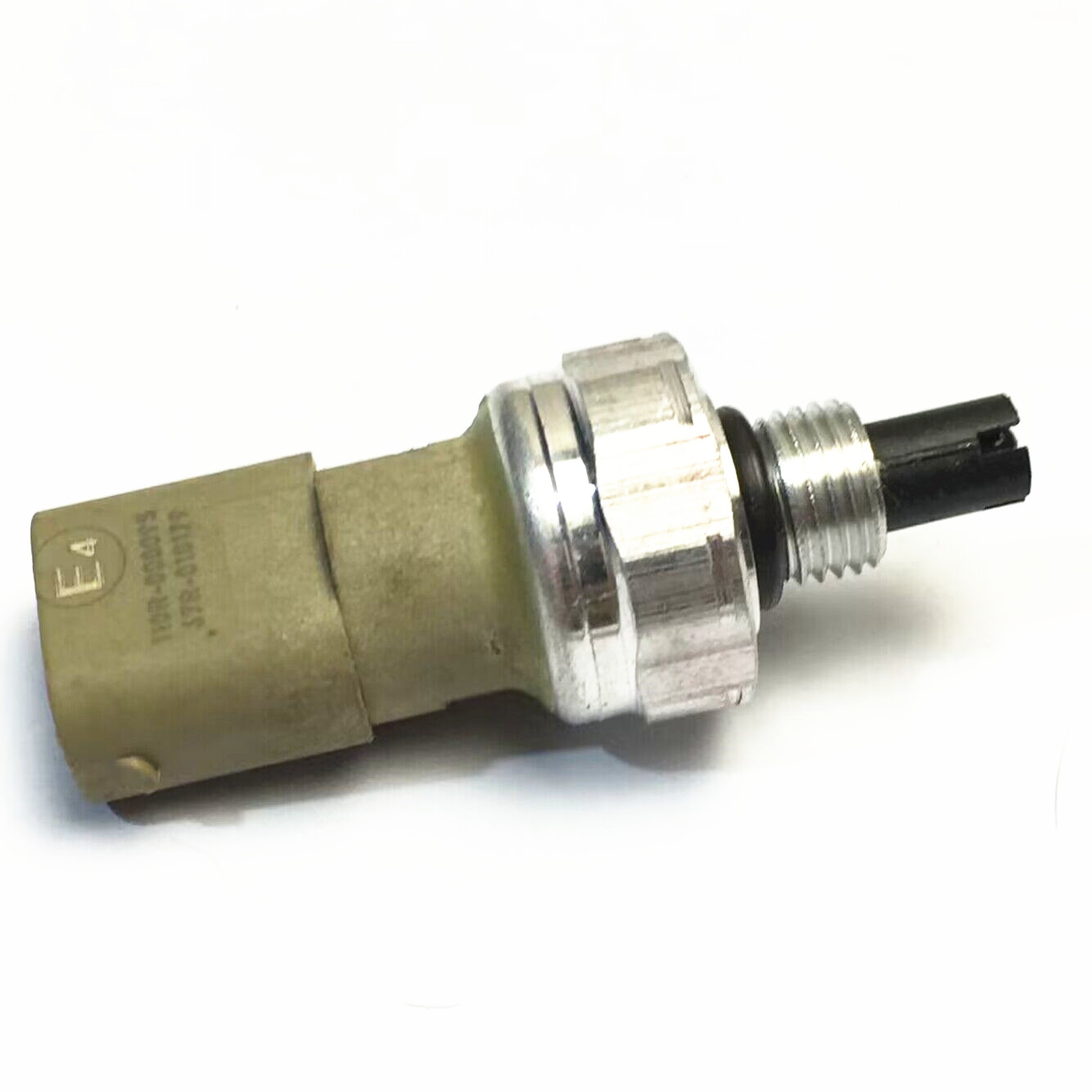

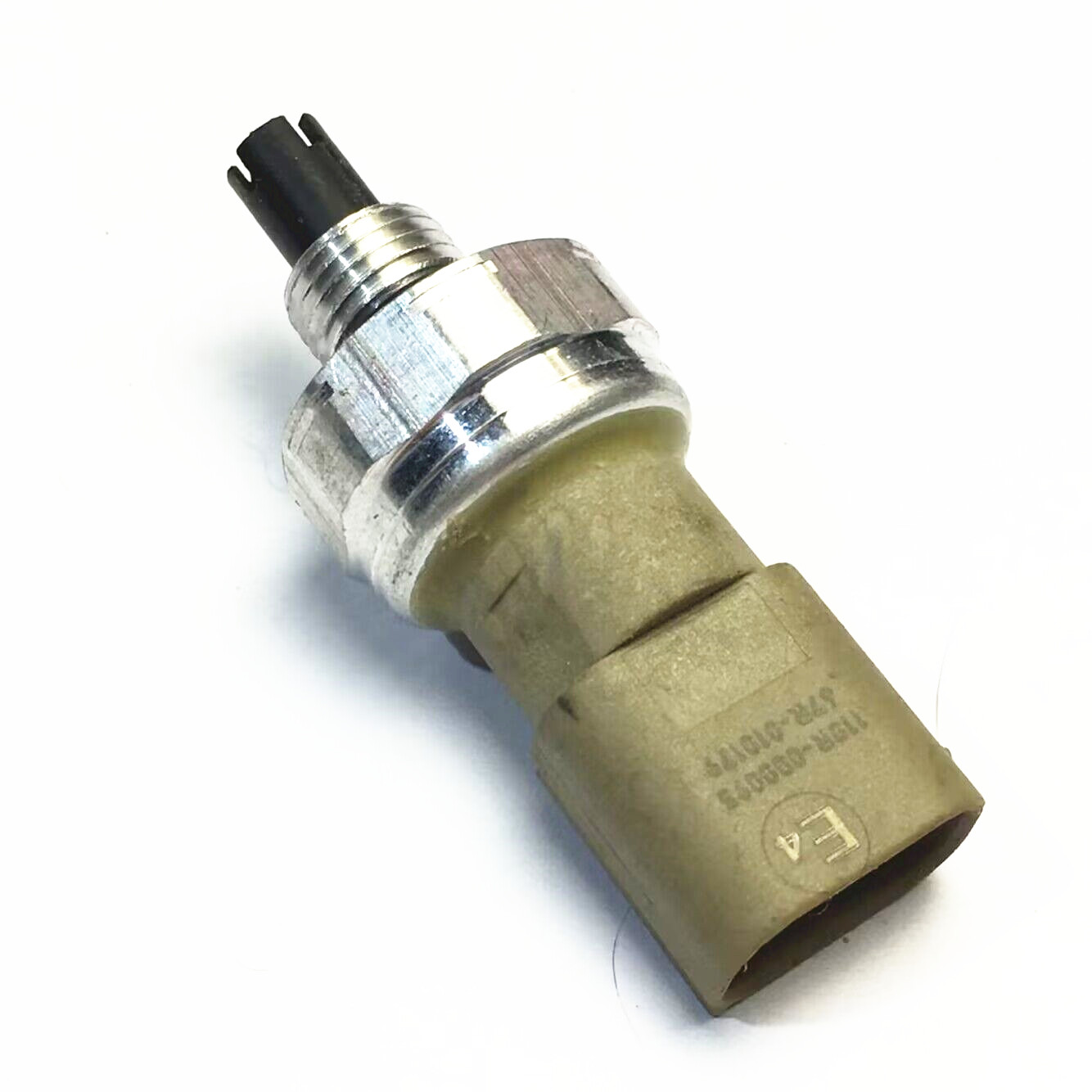

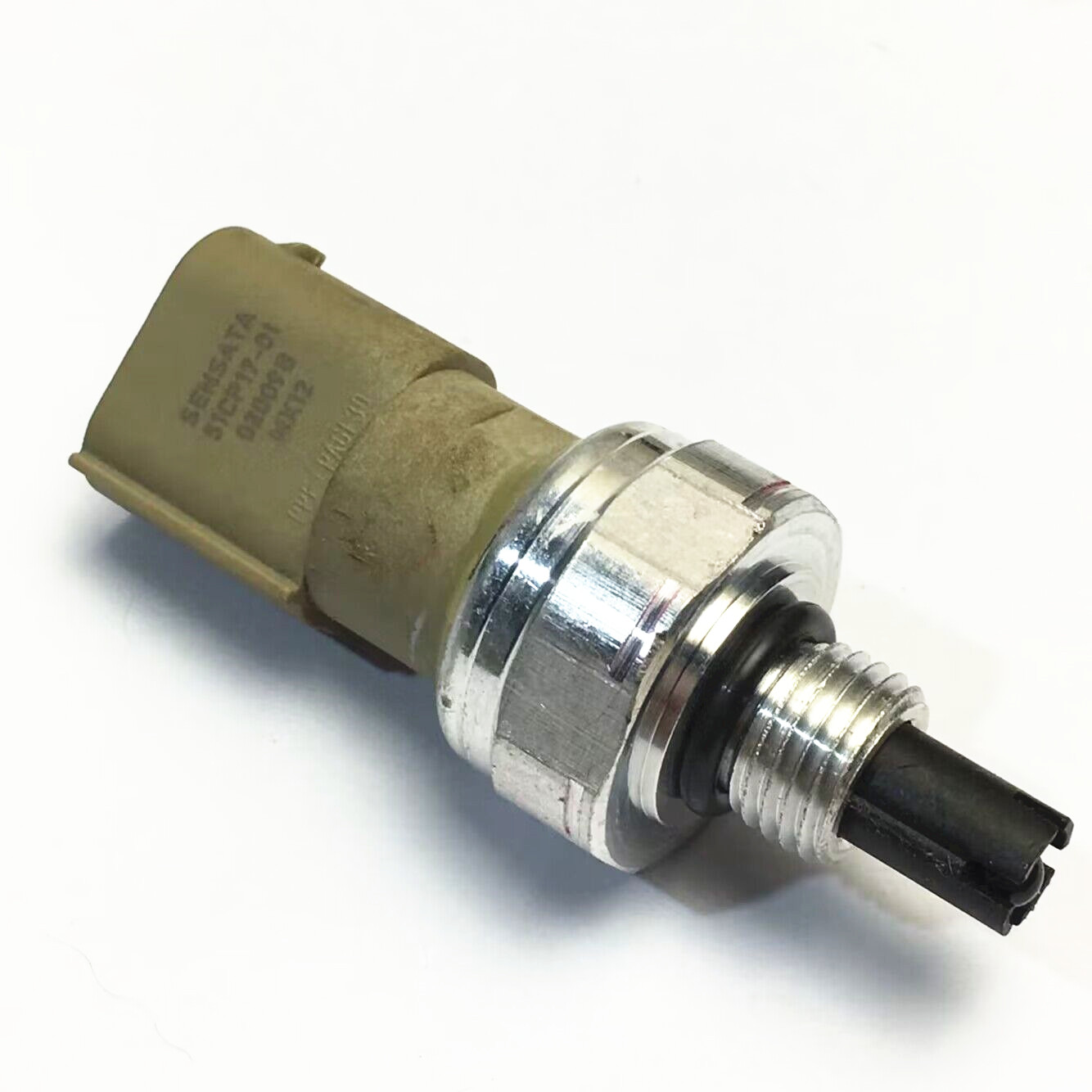

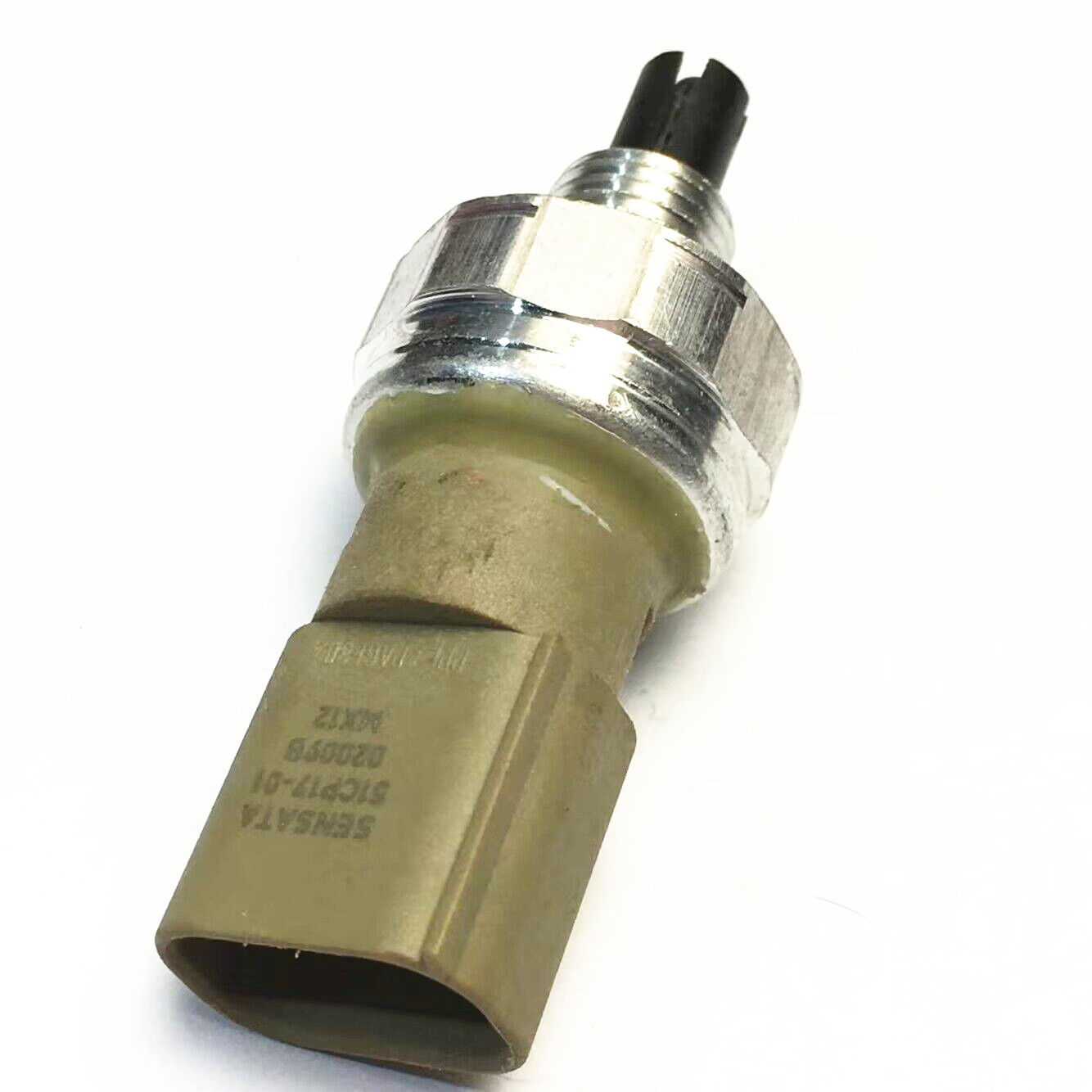

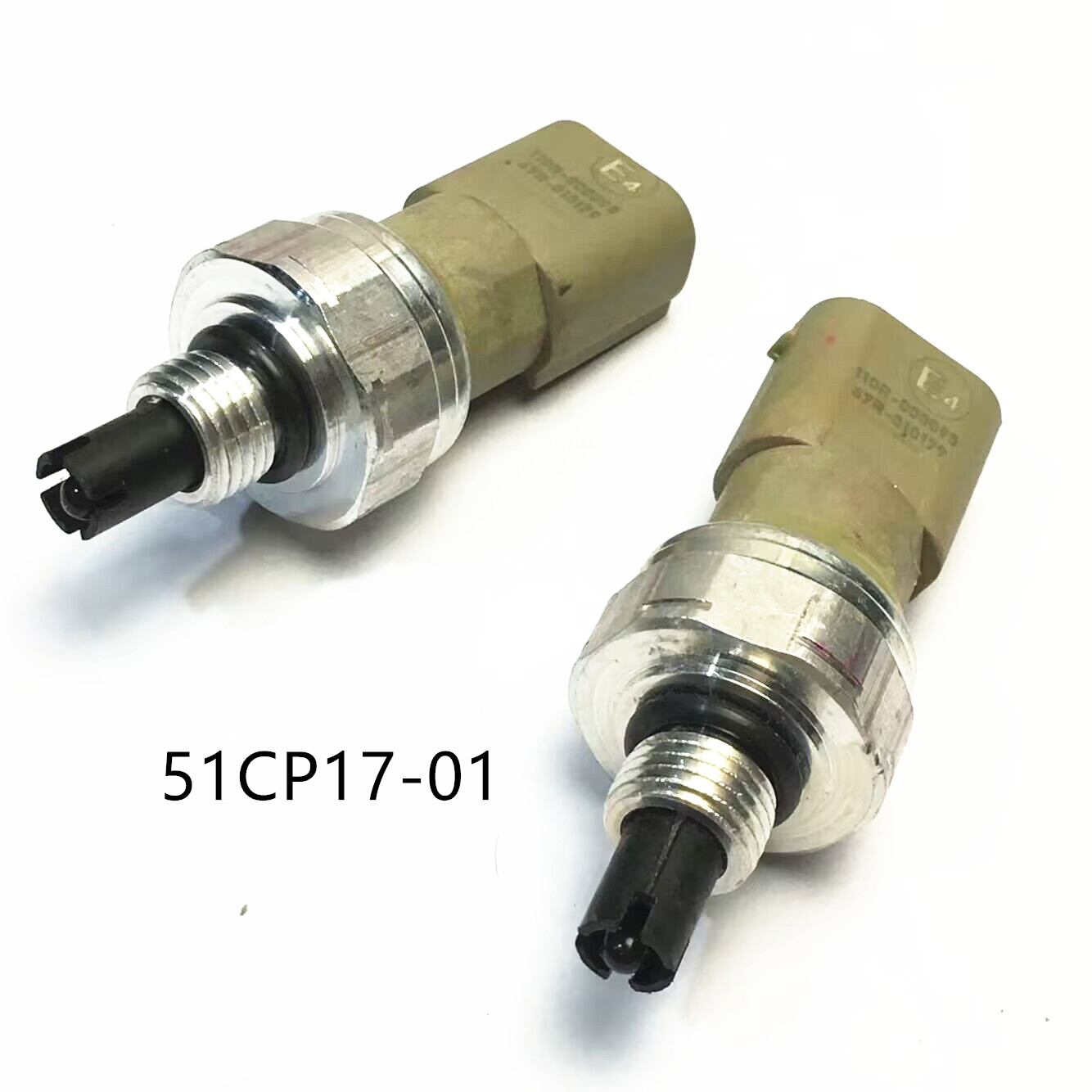

FOR SUZUKI SX4 2/4WD 1.5i 82 kW/1.6i 88 kW Euro 5
Port: M12x1.5 male
Port Materail: Aluminum
Performance (Pressure):
Accuracy…………………………………………………………±0.75% span
Temperature (nominal)………………………………±0.16% span/°C
Temperature (nominal)………………………………±0.16% span/°C
Performance (Temperature):
Accuracy…………………………………………………………±1% span (delta R/R)
Resistance @ 25°C………………………………………10K or 100Ω
Operating Temperature* …………………………-40°C to 135°C
Resistance @ 25°C………………………………………10K or 100Ω
Operating Temperature* …………………………-40°C to 135°C
Electrical:
Supply……………………………………………………………4.5 to 5.5 Vdc
Output……………………………………………………………0.5 to 4.5 Vdc typical
Supply Current……………………………………………15.0 mA max
Output Current……………………………………………8.0 mA
Output Load Range………………………………………10K-50KΩ
Output Response Time………………………………10mS
Supply Overvoltage Protection………………………………………16 VDC
Supply Reverse voltage Protection………………………………-14 VDC
Output……………………………………………………………0.5 to 4.5 Vdc typical
Supply Current……………………………………………15.0 mA max
Output Current……………………………………………8.0 mA
Output Load Range………………………………………10K-50KΩ
Output Response Time………………………………10mS
Supply Overvoltage Protection………………………………………16 VDC
Supply Reverse voltage Protection………………………………-14 VDC
